OCELOT ⇝ electroacoustic companion

from €169.00

shipping costs and VAT - if applicable - will be calculated at checkout.

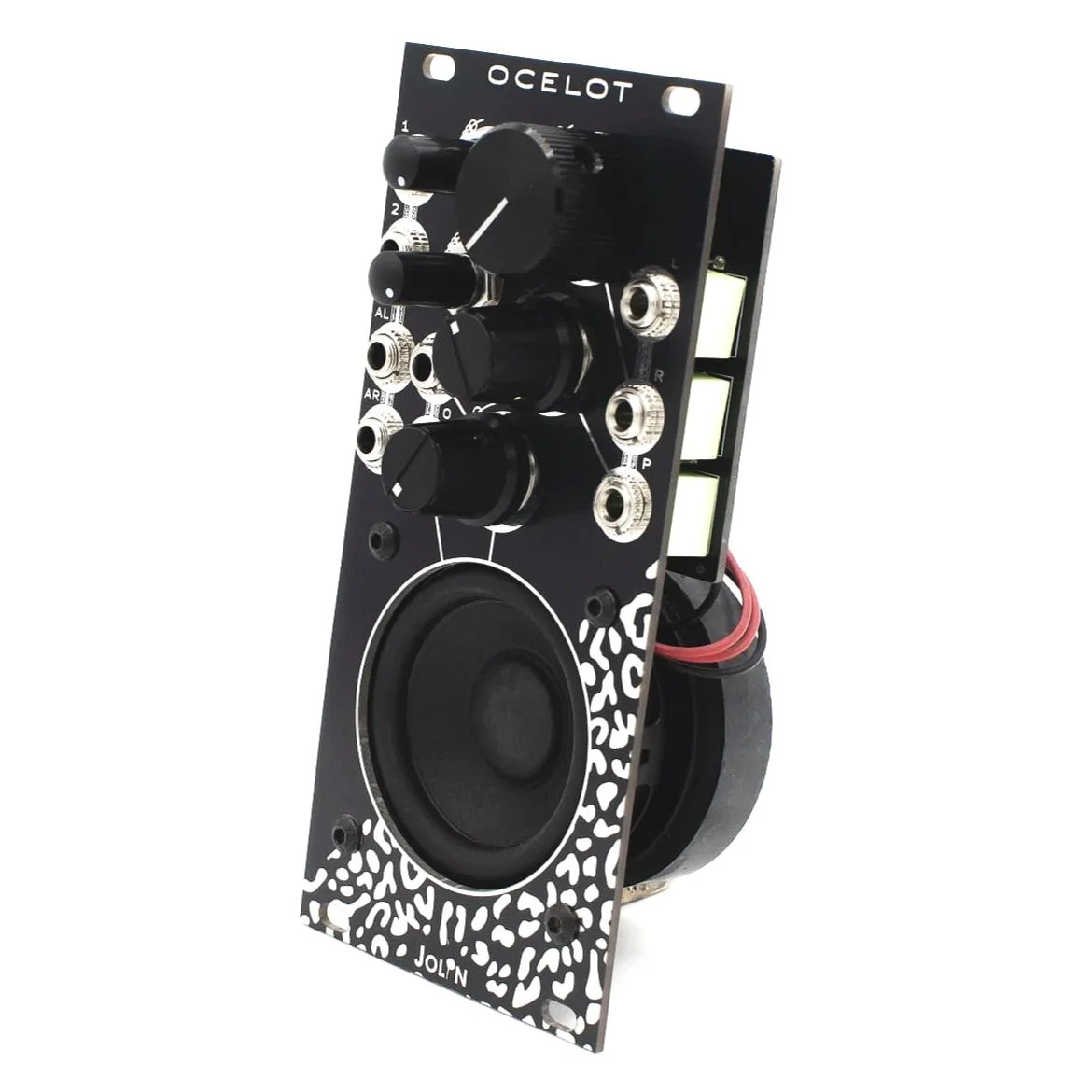

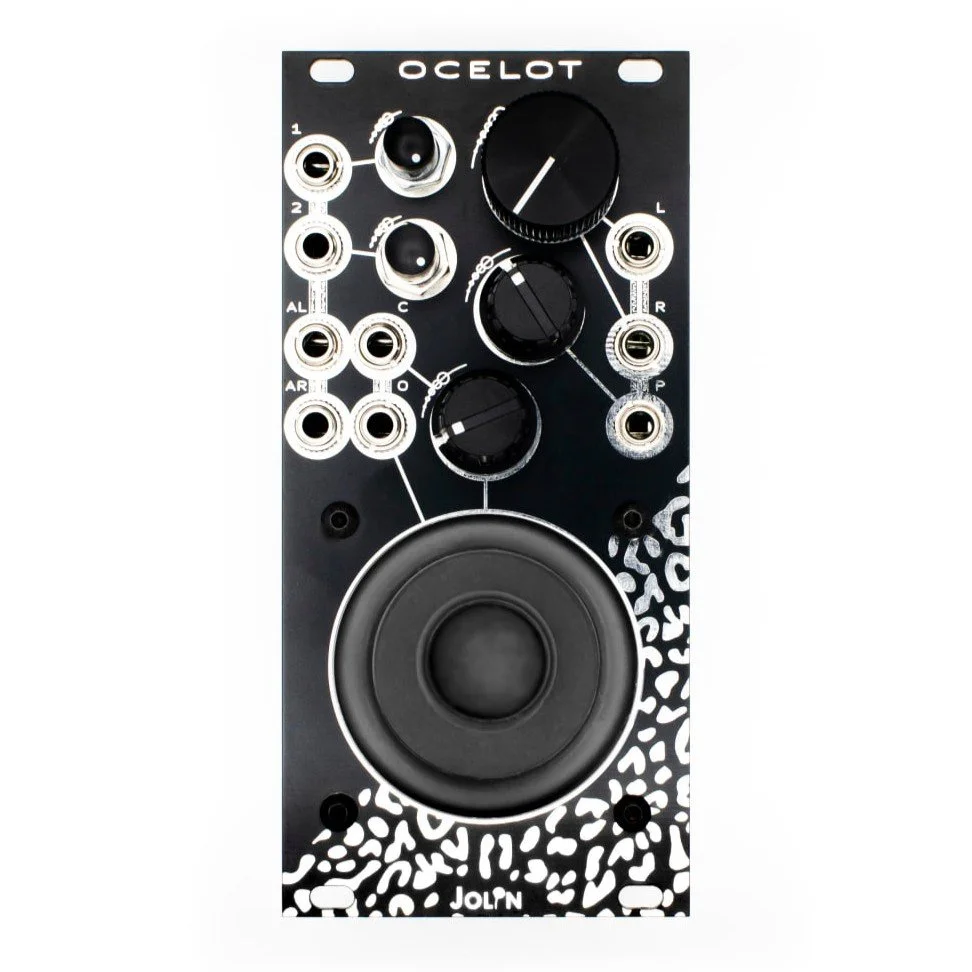

OCELOT is a tactile electroacoustic interface and a compact monitor station. Listen, mix, and interact with your surroundings or turn the module itself into a resonating feedback instrument.

First 20 units ship starting November 1st.
Further units will follow in purchase order.

Assembled: ready to use, tested and calibrated.

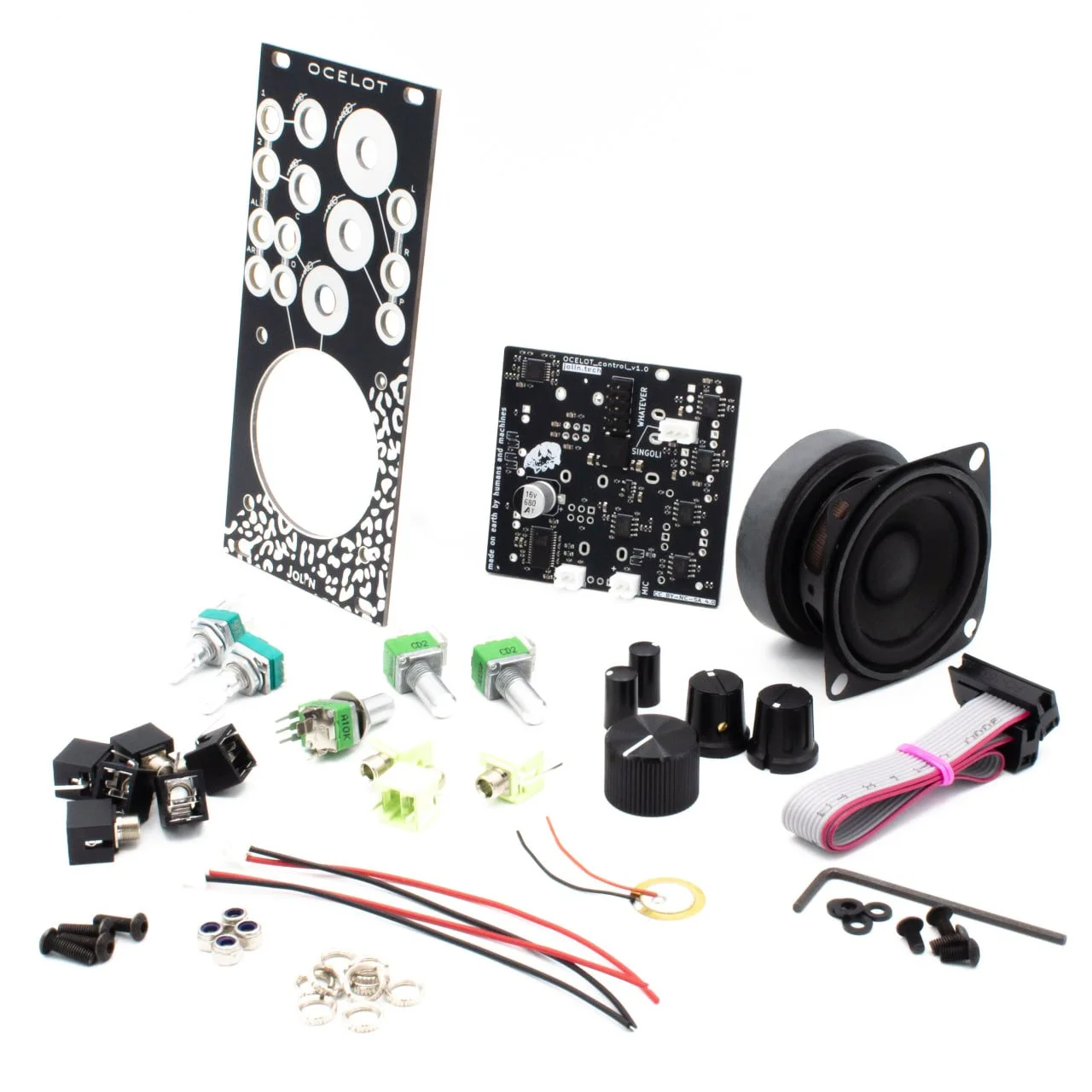

DIY Full Kit: all through-hole components.

⟿ user manual
⟿ DIY build guide

Option:

shipping costs and VAT - if applicable - will be calculated at checkout.

OCELOT is a tactile electroacoustic interface and a compact monitor station. Listen, mix, and interact with your surroundings or turn the module itself into a resonating feedback instrument.

First 20 units ship starting November 1st.
Further units will follow in purchase order.

Assembled: ready to use, tested and calibrated.

DIY Full Kit: all through-hole components.

⟿ user manual
⟿ DIY build guide

    • 4-input compact mixer (2 Mono with level controls + 1 Stereo Aux).

    • Integrated speaker with independent volume control and direct override input (C).

    • Built-in contact piezo normalized to mono inputs with dedicated direct output (O).

    • Balanced stereo outputs (L & R) with master volume control.

    • High-fidelity headphone driver with independent volume knob (P).

    • Electroacoustic feedback capability between built-in speaker and piezo element.

    • Native integration with Singoli with a dedicated header on the back.

    • “whatever” power connector – don’t mind the polarity, it’s protected eighter way.

    • width 12HP

    • depth 36mm

    • 400mA +12V

    • 70mA -12V
