matrix raw drone

Features

• 100 Transistor-Based Oscillators with 20 different oscillation frequencies divided into 10 banks of which all have a control wheel potentiometer, starve input, dedicated output and an assignable performance-oriented button.

• A Dupont patchbay with 200 access points for an open design approach.

• 4-Pole resonant state variable lowpass filter with dedicated CV controls.

• Master Starve control with CV input.

• Global envelope and peak CV output.

• Hi-Z Preamp with pre/post filter switch for auxiliary input.

• High-quality headphone driver – 3.5mm stereo jack.

• Flexible power solutions to enhance portability: USB C power delivery (20V) or barrel brick (18-24V).

• Designed to power another small compatible Eurorack case or pod (male-male cable included).

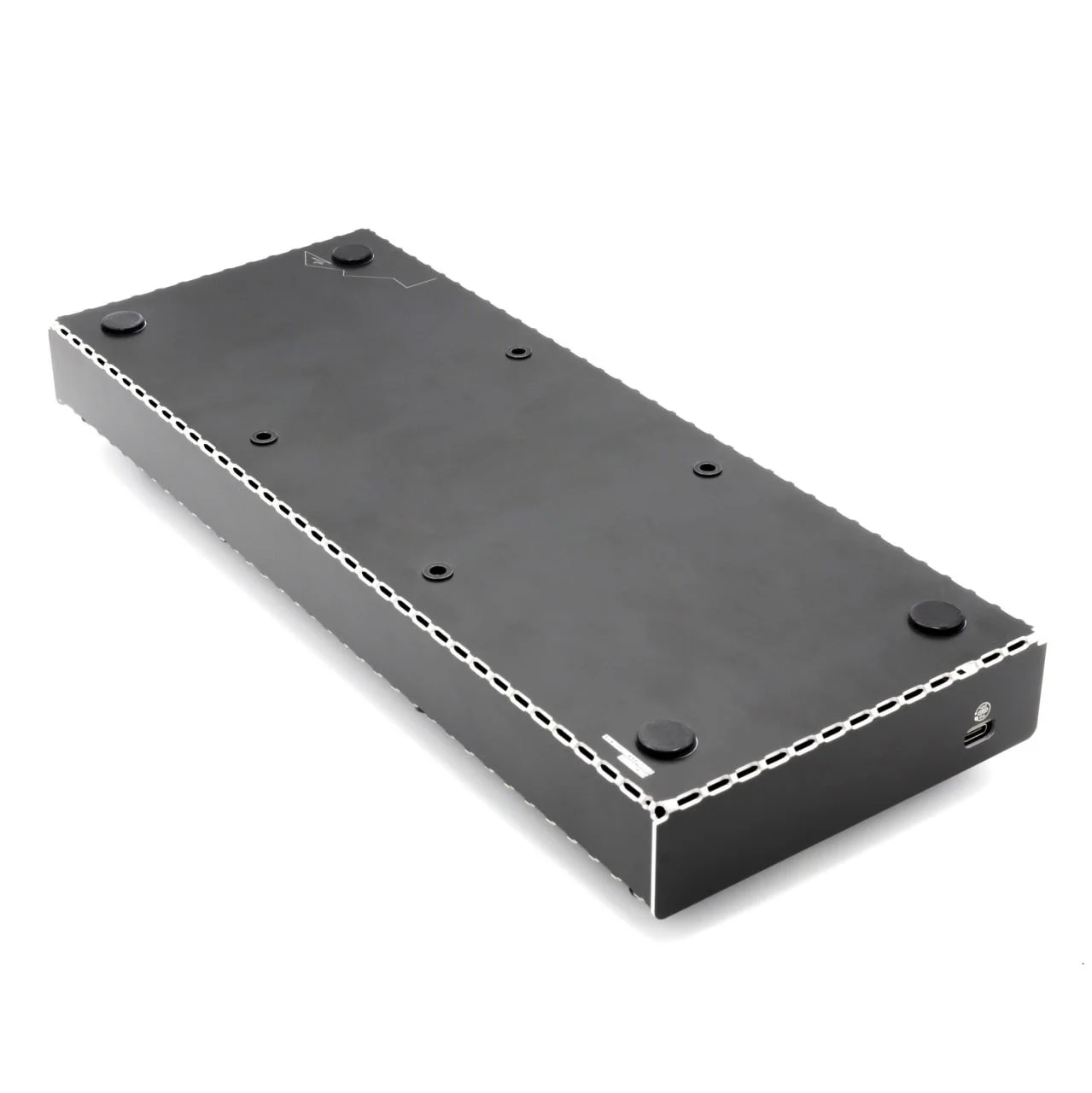

• Standalone with a custom epoxy coated black aluminium case.

• VESA mount 100x100.

• Eurorack compatible with front-panel selector switch.

Technical Specs

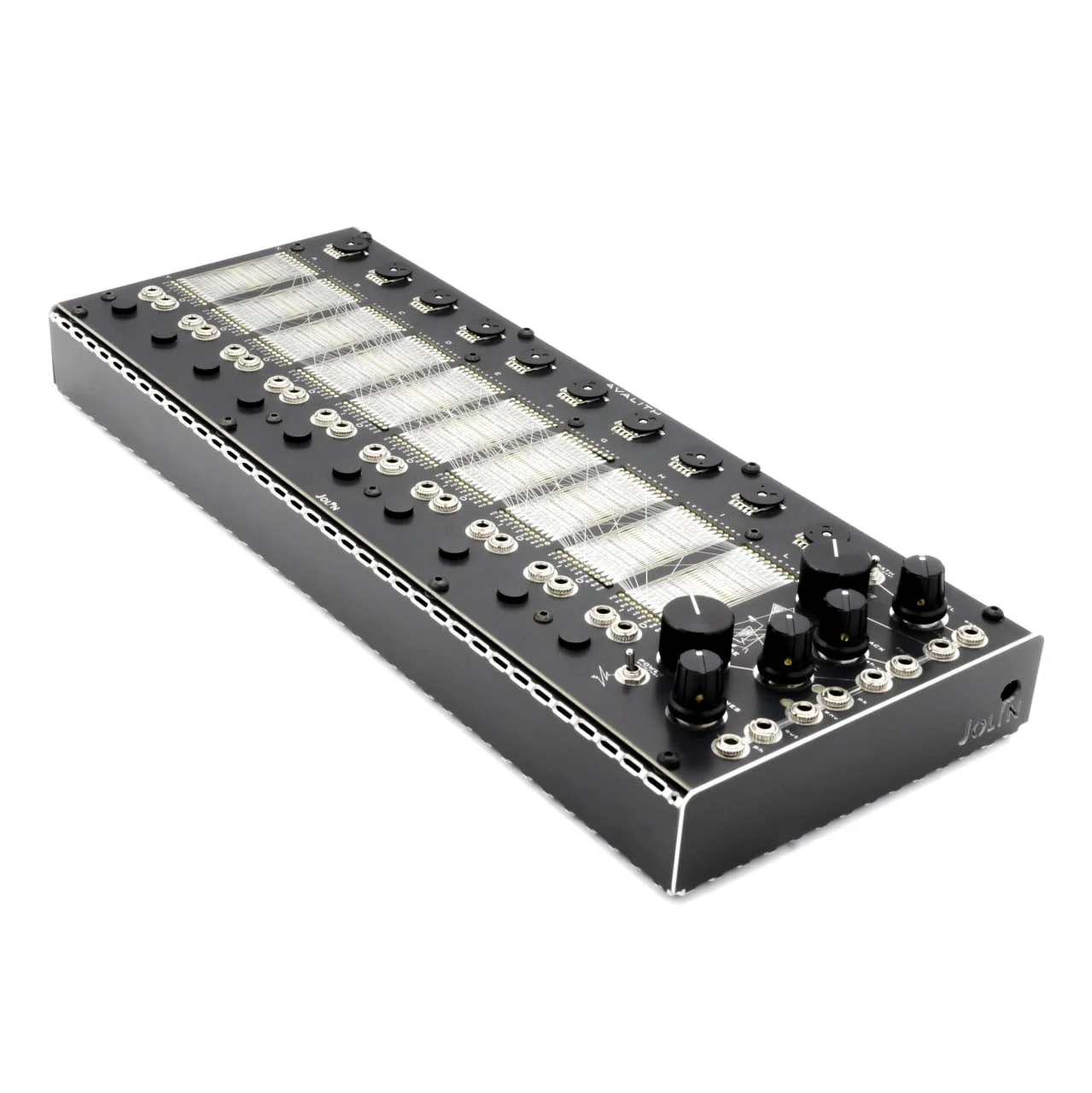

AVALITH is a drone synthesizer featuring a matrix of 100 raw oscillators in an open design configuration, framed by a four-pole analog lowpass filter.

It operates on the principle of utilizing transistors in a state known as negative resistance (negistors), similar to the concept used in its predecessor, Tabor.

The fundamental aim of Avalith is to produce a dense and immersive 'wall of sound' by manipulating pure electrical signals. This involves generating waves of various amplitudes and frequencies and then combining them to create a monolithic undertone.

With 100 open and amorphous oscillators, Avalith seeks to recreate the creative environment that led to Tabor's inception, allowing users to patch them individually or in banks.

These oscillators are grouped into sets of ten, each featuring frequency controls, internal patch bays, dedicated I/O sockets, and arrays of performance-oriented buttons for customizable functions.

The 'starve' control regulates voltage entering the transistors to induce the negative resistance state, adjustable at both individual bank and master levels via control voltage.

Its filter system includes an analog state variable 4-pole lowpass filter with resonance and frequency controls, complemented by dedicated CV inputs and an attenuverter for external control.

Avalith also includes a built-in input preamp with routing options, enabling users to incorporate external audio sources into their sound design process. This feature expands the creative possibilities by allowing the blending of external sounds with the synthesized signals generated by the oscillators.

As a standalone desktop unit, Avalith features an innovative hybrid power supply utilizing USB-C Power Delivery (20V), with the DC barrel plug doubling as an output to power another compatible eurorack case, making it ideal for outdoor use with a PD power bank. Additionally, Avalith can accept power from a standard power brick (18V to 24V) if USB-C Power Delivery is not available.

When integrated into a eurorack system, Avalith is 68HP wide, with the power selector toggle also serving as an on/off switch.
