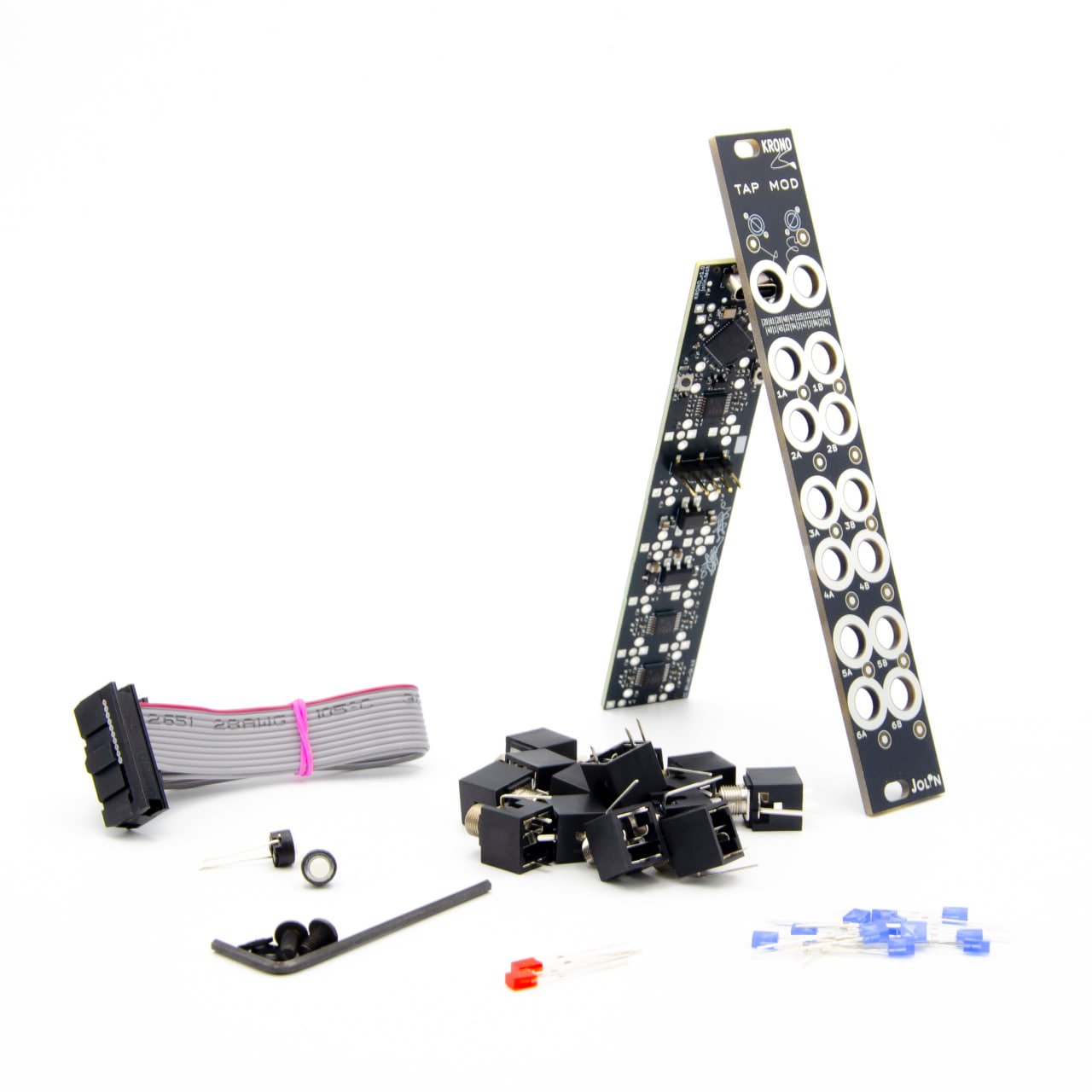

KRONO ⇝ multi-modal programmable clock generator FULL DIY KIT
shipping costs and VAT - if applicable - will be calculated at checkout.
KRONO is a 4HP programmable multi-mode clock and rhythm generator module featuring tap tempo, state persistence, CV group swap and 12 independent outputs.
shipping costs and VAT - if applicable - will be calculated at checkout.
KRONO is a 4HP programmable multi-mode clock and rhythm generator module featuring tap tempo, state persistence, CV group swap and 12 independent outputs.
shipping costs and VAT - if applicable - will be calculated at checkout.
KRONO is a 4HP programmable multi-mode clock and rhythm generator module featuring tap tempo, state persistence, CV group swap and 12 independent outputs.
-
12 Clock Outputs divided into two groups (A/B)
10 Operational Modes covering standard, mathematical, musical, probabilistic, and chaotic rhythms.
Weighted Tap Tempo & External Sync
State Persistence: Saves Tempo, Active Mode, and Swap State for each mode, retaining them across power cycles.
Calculation Swap: Inverts functions between groups via the MOD button or external gate.
Visual Feedback: the Status LED indicates the active mode; the Auxiliary LED signals state changes (tap, mode select, swap).
Fixed Base Clock Outputs: Outputs 1A and 1B always provide the unmodified main clock.
Hardware Platform: Based on CPU STM32F411.
Open Source: Firmware developed with PlatformIO (C/C++), customizable.
Programming: Via USB-C DFU.
“whatever” power connector – don’t mind the polarity, it’s protected eighter way.
-
width 4HP
depth 30mm
50mA +12V
5mA -12V
