dual specular Benjolin

Features

• Dual specular and cross-modulated Benjolin circuits with extra mods.

• Uneasy design - not user friendly.

• External clock - XOR - gates - rungler I/O.

• Dedicated vactrol VCA on the two main filtered outs.

• Switchable filter input.

• Reverse power protection.

Technical Specs

• width 22HP

• depth 25mm

• 280mA +12V

• 160mA -12V

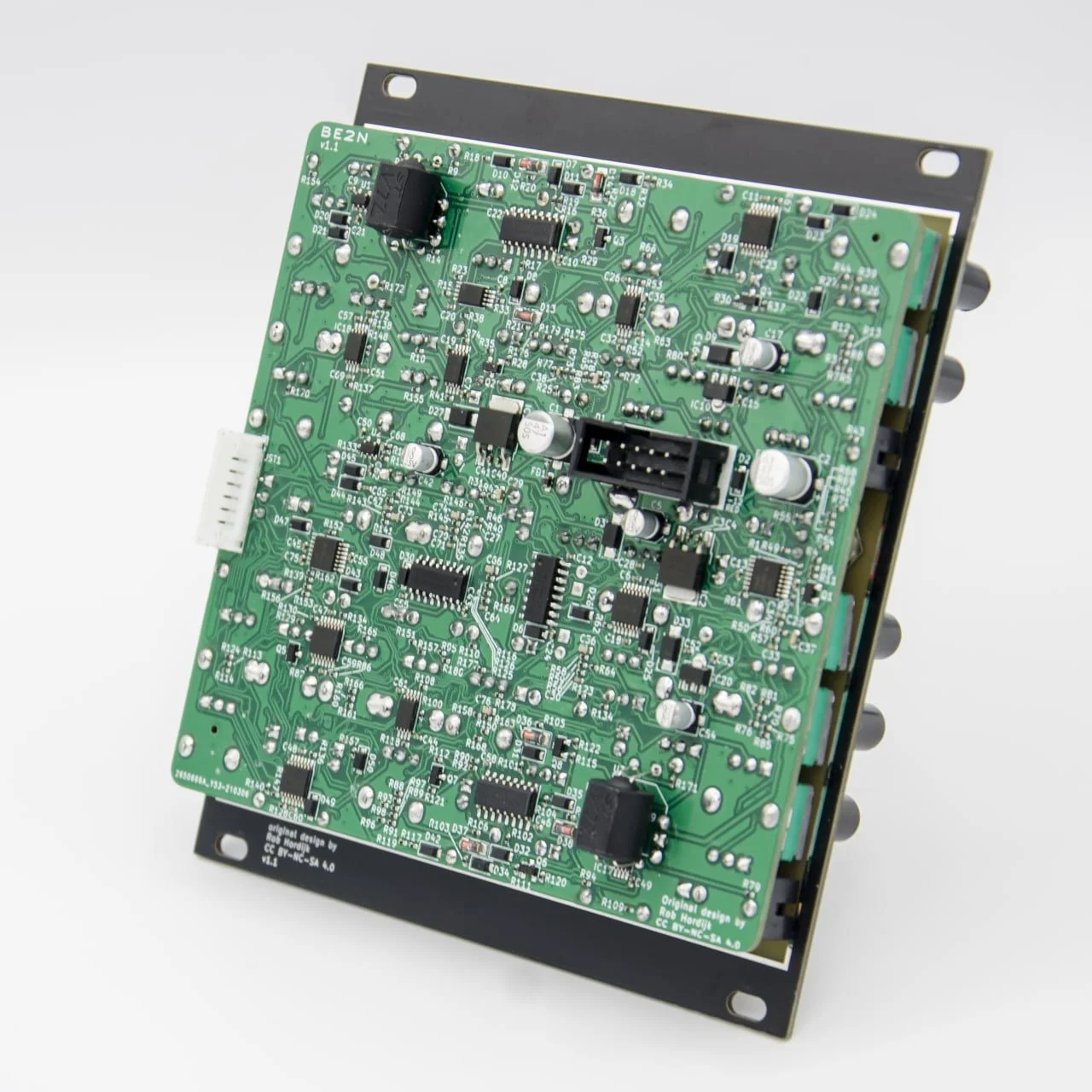

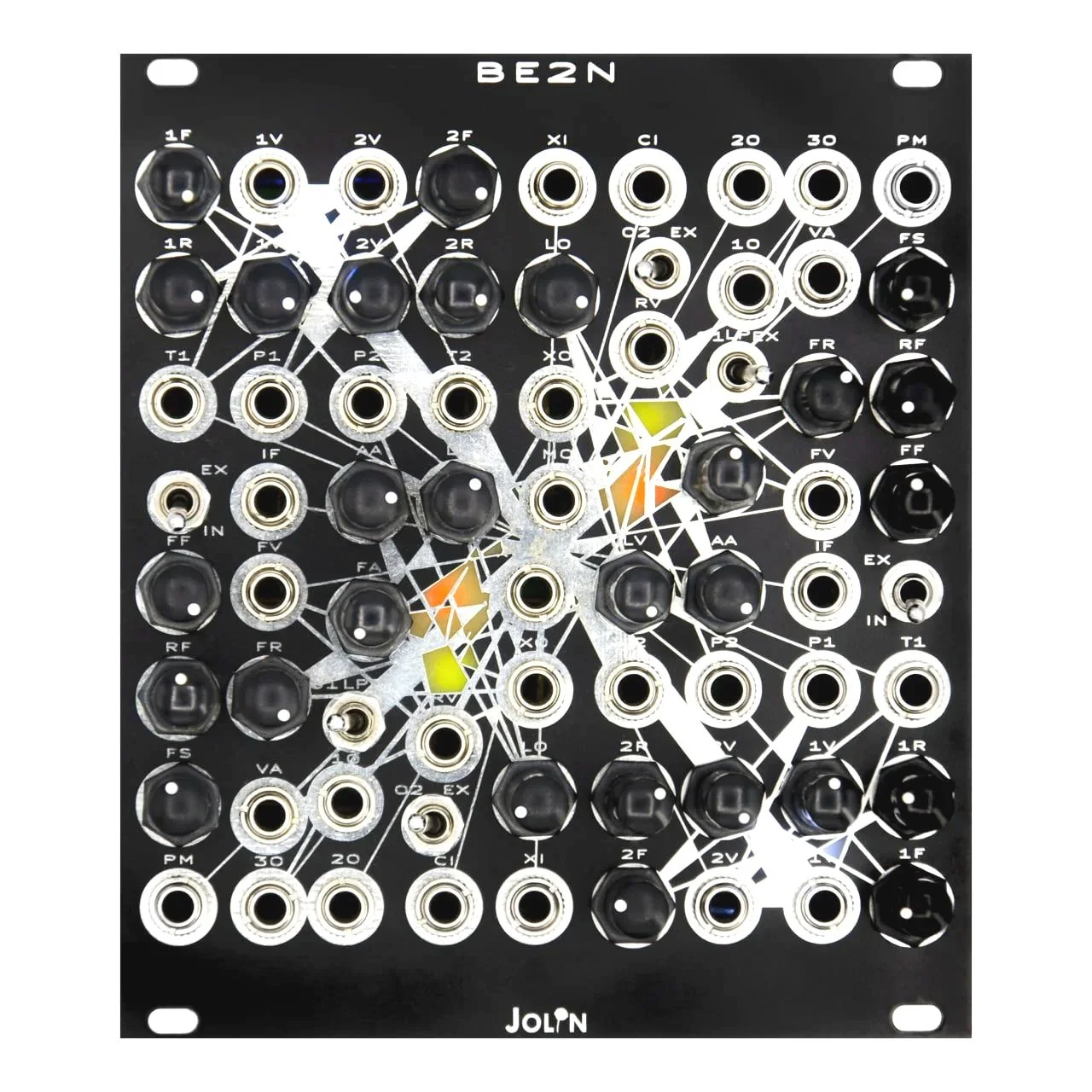

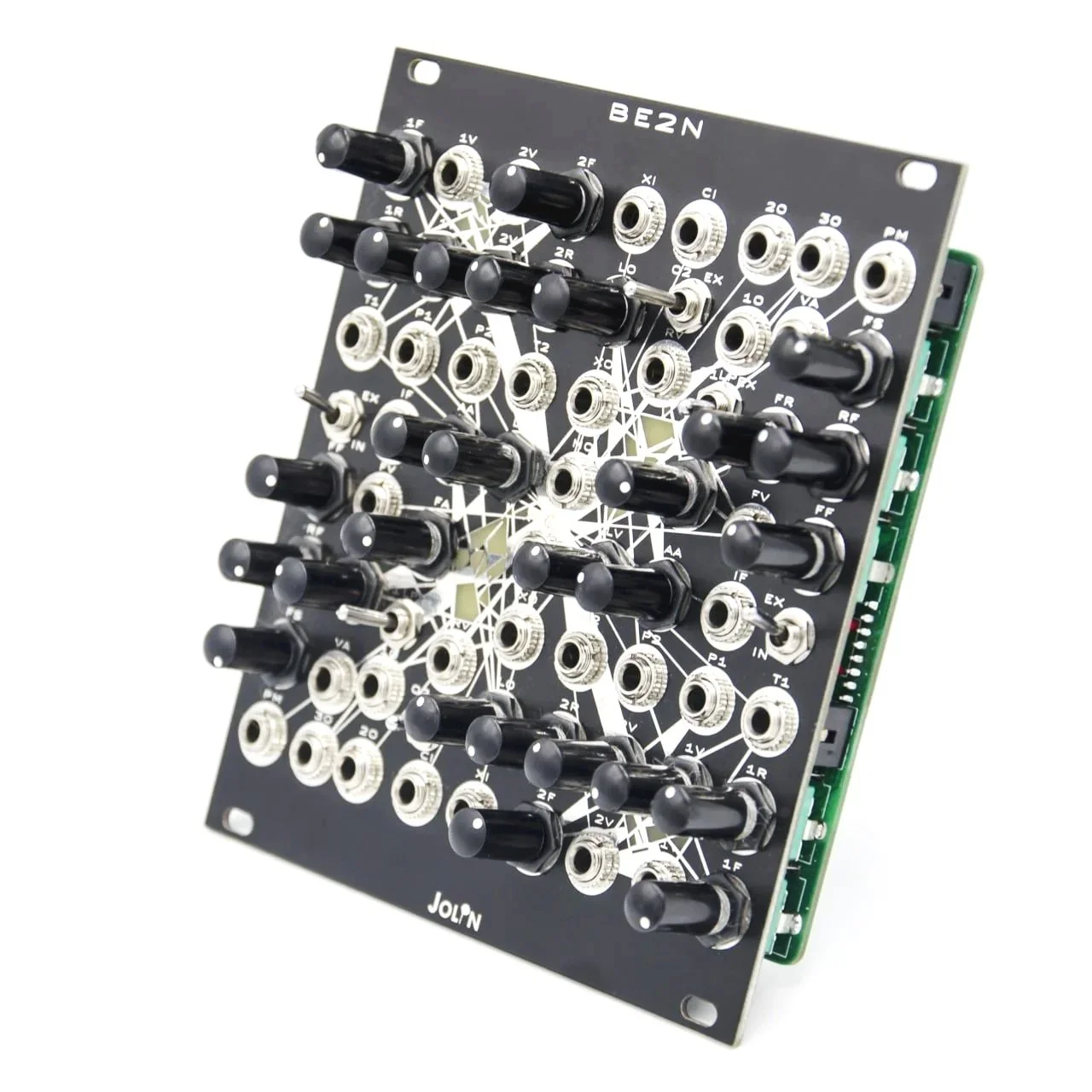

BE2N is a 22hp eurorack module with two specular Benjolins at its core.

Clicking the DIY MATERIALS button gives you full access to all files and documentation needed to build the module yourself, including PCB and panel gerbers. The project is fully open source in its DIY form.

If you’re not into DIY, an assembled version is also available in the shop, built by us.

This is a tribute re-design released strictly for non-commercial use.
Build one for yourself.

Thanks to Rob Hordijk for making it happen.
